FTC/FRC 赛事专用电机NeveRest Orbital 3.7 Gearmotor

Product Overview

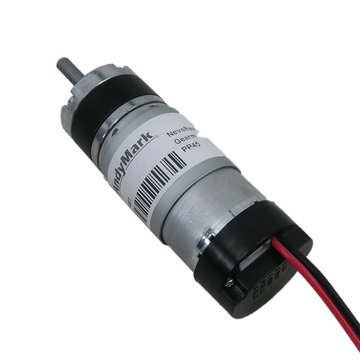

The NeveRest is a gearbox and motor combination with an attached encoder designed with FIRST Tech Challenge teams in mind, by including geometry that matches existing bolt patterns. The shaft is 6mm in diameter and the gearbox housing is 37mm in diameter. The power cable which feeds into the black encoder housing for the motor has two powerpole connectors already crimped to the end of the cable making the gearmotor or motor by itself, ready to use.

FRC/FTC Legality:

• According to the FIRST Tech Challenge Game Manual Part 1, Rule RE09, this is legal for the 2019-2020 FTC Game (SKYSTONE).
• According to the FIRST Robotics Challenge Game Manual, Rule R34, this is legal for the 2019 FRC Game (Destination: Deep Space) as it uses the NeveRest am-3104 motor.

Encoder Cable Options:
The NeveRest Orbital 20 does not currently come with our cable which has the white 4-pin connector for the encoder and also the black 4-pin connector for the HiTechnic and Modern Robotics motor controller. am-2993 is an optional encoder cable which has the white 4-pin connector on one end and 4 separate black connectors on the other end.
